Product Name
|
Voltage
|
Accuracy class
|
Specifications
|
Function Option
|
|
DTSU6606
|
MQ
|
1
|
6M4
|
H
|
|
MQ:220/380V
WY:57.7/100V
|
1: Class 1
2: Class 2
|
6M4:1.5(6)A
...
100M3:30(100)A
|
H： connect via VT/CT
Default: Direct connection
|
|
Name
|
Type
|
Reference Voltage (V)
|
Accuracy class
|
Basic Current (Max. Current) (A)
|
|

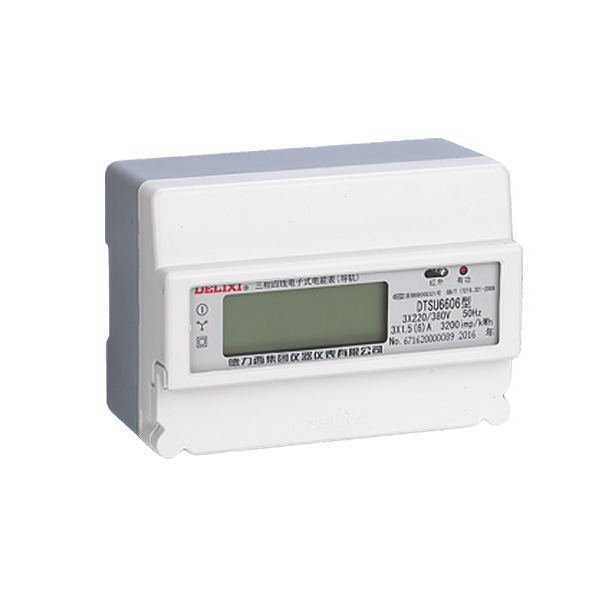

Three-phase four-wire electronic energy meter(DIN rail)
|
DTSU6606
|
3×220/380
|
1.2
|
1.5(6), 5(20), 10(40), 5(60), 15(60), 20(80), 10(100), 30(100)
|
|
3×57.7/100
|
Note: 1) "M" in the specification code represents multiple of current.
2) The ordering code "H" stands for VT/CT. The function of connection via VT/CT is only available for 1.5(6)A, and
Ordering information
The Ordering code for a three-phase four-wire electronic energy meter (DIN rail, LCD, infrared &485)connected via VT/C
LCD display, easy to read,
wide measurement range,high overload ability, high accuracy, good reliablility when working
infrared and RS485 communication function
|
Certificate
|
 ZZ No. 00000321
|
|
International Standard
|
IEC 62053-21
|
|
National Standard
|
GB/T 17215.321
|
|
Current Specifications
|
1.5(6), 5(20), 10(40), 5(60),15（60），20（80），10(100), 30（100）
|
|
Reference Voltage
|
3×57.7/100, 3×220/380
|
|
Accuracy class (Class)
|
1, 2
|
|
Power Consumption
|
Power Consumption of Voltage Circuit≤2W/5VA, Power Consumption of Current Circuit≤1VA
|
|
Dual-direction energy metering
|
Can measure accurately forward and backward power. The two direction energy is metered as one direction accumulatedly.
|
|
Project Needs
|
The user can make a requirement for more functions if necessary when placing an order.
|
|
operation condition
|
|
working temperature
|
-10-+45℃
|
|
annual average relative humidity
|
＜75%
|
