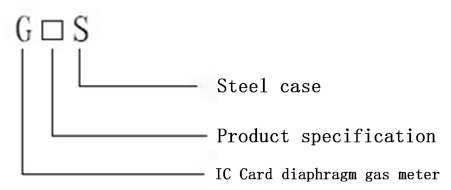

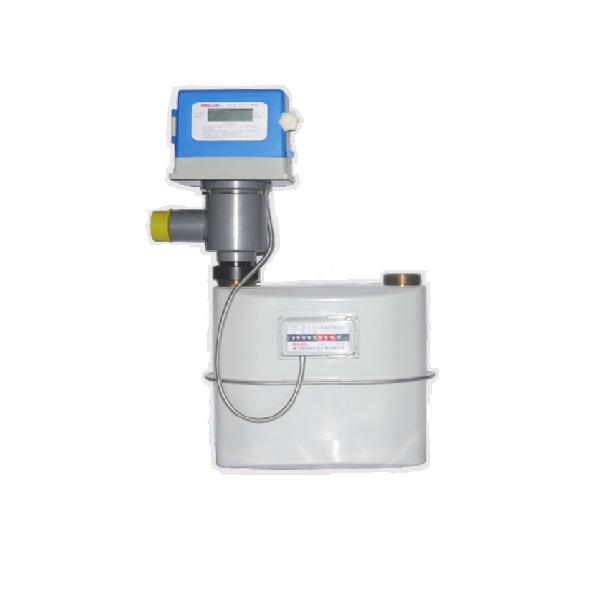

CG6S, CG10S, CG16S, CG25S, CG40S IC card diaphragm gas meters are type of combustion gas metering device which is designed with function of prepayment and be composed of diaphragm gas meters as basic gas meter, IC card as media, as well as electric controller. In addition, their technical performance complies with the specification of GB/T 6968-2011 and JJG577-2012.
The gas meters comply with GB3836.1-2010 Electrical apparatus for explosive gas atmospheres – Part 1: General requirements, and GB 3836.4-2010 Electrical apparatus for explosive gas atmospheres. Part 4: Intrinsic safety “i”. The gas meters’ ex-mark is ExibII BT3 Gb, and they are applicable to the place of II A-II B Zone 1 & Zone 2 and T1-T3 Explosive gas mixture.
Function feature:
Lower static power consumption, and longer life-service of battery;
Visualized interface and Chinese display for the information like inadequate residual gas volume, battery under-voltage and valve status etc.;
Multi-encryption authentication for data save and access provides safety and reliability;
Automatic sensor fault inspection and handling;
Abnormal data recording and operating data feedback of gas meters;
Available to setup max. gas volume to prevent end user to accumulate large gas volume and reduce the loss at gas administration authority caused by gas price fluctuation;
Available to setup overdraft gas volume and alarm volume;
Available to setup max. days for non-operating status of gas meter;
Treatment of moisture proof and oil-smoke-proof has been adopted for cover and module of gas meter;
Adopt module design for management software with friendly human-machine interface, intuitive easy-to-understand operation;|
Technical data \ Type & specification |
CG6S |
CG10S |
CG16S |
CG25S |
CG40S |
|
|
Max. flow rate qmax（m3/h） |
10 |
16 |
25 |
40 |
65 |
|
|
Min. flow rate qmin（m3/h） |
0.06 |
0.1 |
0.16 |
0.25 |
0.4 |
|
|
Indication error |
qt≤q≤qmax |
±1.5% |
||||
|
qmin≤q≤qt |
±3% |
|||||
|
Operating condition |
Relative humidity（%） |
≤85 |
||||
|
Temp.（℃） |
-10 ～ +40 |
|||||
|
Accuracy class |
1.5 |
|||||
|
Max. operating pressure（kPa） |
20 |
|||||
|
Total pressure loss（Pa） |
≤250 |
≤370 |
||||
|
Durability |
Conform to GB/T 6968-2011standard |
|||||
|

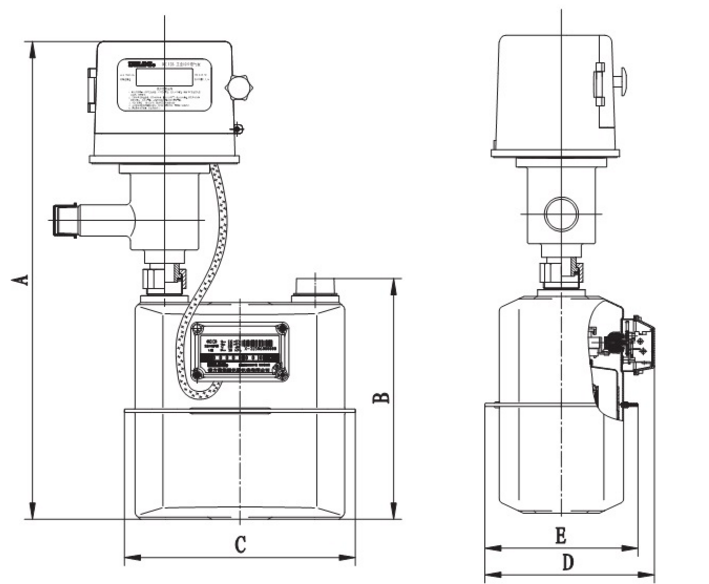

Center distance of pipe connector（mm） |
180 |
250 |
280 |
335 |
440 |
|
|
Thread of pipe connector（mm） |
G1 1/4 |
G2 |
G2 |
G2 1/2 |
G3 |
|
|
Weight （kg） |
10 |
14 |
46 |
|||
|
Error limit of electromechanical signal conversion（m3） |
≤0.1 |
≤1 |
||||
|
Usage count of IC card（time） |
105 |
|||||
|
Max. Instantaneous current（mA） |
<160 |
|||||
|
Quiescent operating current（uA） |
≤15 |
|||||
|
Data storing time（year） |
>10 |
|||||
|
Power 6V |
Four 1.5V Alkaline NO.5 battery（LR6 1.5V） |
|||||

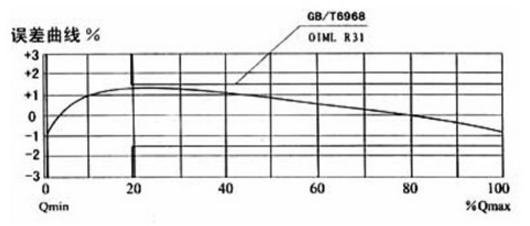

Error curve
□ It is prohibited to install at bedroom, bathroom and the place stored with dangerous goods and flammables, or somewhere similar to the aforesaid.
□ The installation of gas meter should satisfy the requirements of meter reading, repairing, maintenance and safety operation.
