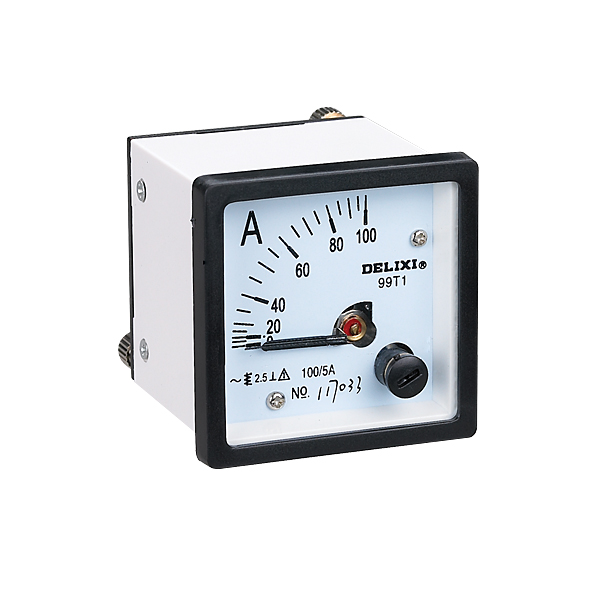

This product contains the following details
| Product name | Input method | Design No. | Type | Range |
| 96 | C | 1 | A | * |
|
99：99 96：96 72：72 |
C: DC |
1:1 |
A: Ammeter |
*: *A (V, Hz, W, var, COSφ) Refer to Range Parameter Table |
| Input Method | Type |
| DC | Ammeter, Voltmeter |
| AC (Electro-magnetic ) | Ammeter, Voltmeter |
| AC |
Active Power Meter, Reactive Power Meter, Frequency Meter, Power Factor Meter, voltmeter |
Range Parameter Table
| Product type | Type | Range | Accuracy class |
| DC Ammeter |
72C-A 96C-A
|
Direct Connection to 50μA～500μA | Class 1.5 |
| Direct Connection to 1mA～500mA | |||
| Direct Connection to 1A～20A | |||
| Connection via external shunt to 5A～10kA | |||
| DC Voltmeter |
72C-V 96C-V
|
Direct Connection to 3V～600V | |
| Connection via external resistance to 750V～1.5kV | |||
| AC Ammeter |
72T-A 99T1-A 96T-A
|
Direct Connection to 1A～5A | |
| Direct Connection to 0.5A～20A | Class 2.5 | ||
| Direct Connection to 10A～100A | |||
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | Class 1.5 | ||
| AC Voltmeter |
72T-V 96L-V
|
Direct Connection to 30V～600V |
Class 1.5 Class 2.5
|
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | |||
| Frequency Meter |
72L-Hz 96L-Hz
|
45Hz～55Hz 55Hz～65Hz 45Hz～65Hz | Class 1.0 |
| 100V 220V 380V | |||
|
Active Power Meter Reactive Power Meter |
72L-W 96L-W
|
Direct Connection to 100V 220V 380V | Class 2.5 |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | |||
|
72L-var 96L-var |
Direct Connection 5A | ||
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | |||
| Three-phase Power Factor Meter |
72L-COSφ 96L-COSφ
|
0.5 (lead) ～1～0.5 (lag) | |
| 100V/5A 220V/5A 380V/5A |
Notes
1: All of the 72T-A & 96T-A AC ammeters are 2 times current overloaded ones.
2: For AC ammeters, the current range of directly-connected Type 99 is 0.5A～20A and 1A～5A and 10A～100A for Type 72 and Type 96 respectively.
3: The AC ammeters of 0.5A～20A can be used for Type 99T1-A, with an accuracy of Class 2.5; Type 99T1-V AC voltmeter has an accuracy of Class 2.5 (Class 1.5 for Type 72 and Type 92 voltmeters)
Order Information:
The ordering code for Type 99 pointer panel meter (AC input, ammeter) is 99T1A*.
nDisplay variation trend of measured object and easy to read.
nGripping installation
| International Standard | IEC 51-1~9 |
| National Standard | GB/T 7676.1~9 |
| Industrial Standard | JB/T 9281, JB/T 9282, JB/T 9284, JB/T 9286, JB/T 9287 |
| Voltage Withstanding Test | Frequency 50Hz, Voltage 2000V, Duration 1min |
| Impact Withstanding Test | Max. Acceleration 147m/s2 |
| Responding time | ≤4S |
| Pointer Deviation Angle | 90° |

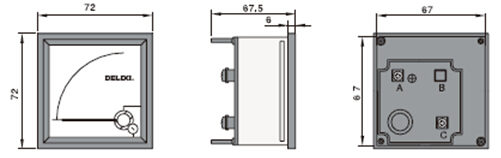

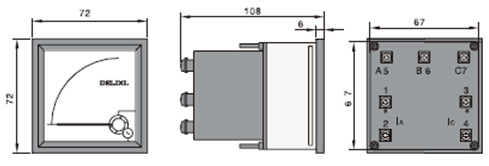

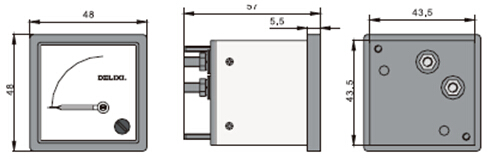

n Outline and Installation Dimensions of 99T1-A, V

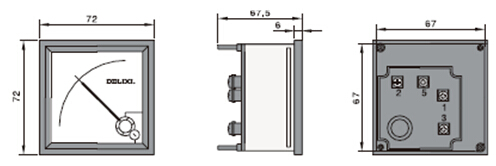

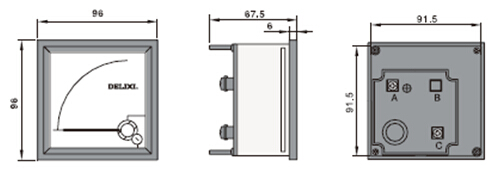

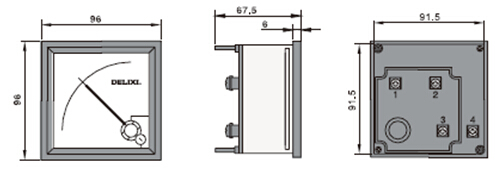

n Outline and Installation Dimensions of ?96C-A, V, 96T-A, V &96L-V, Hz

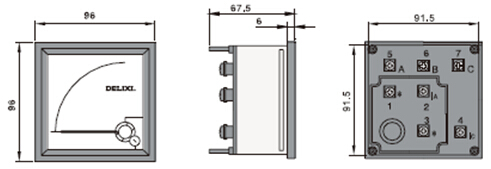

n Outline and Installation Dimensions of ?96L-W, var
n Outline and Installation Dimensions of ?96L-COSφ
n Outline and Installation Dimensions of ?72C-A, V, 72T-A, V &72L-V,HZ
n Outline and Installation Dimensions of ?72L-W, var
n Outline and Installation Dimensions of ?72L-COSφ

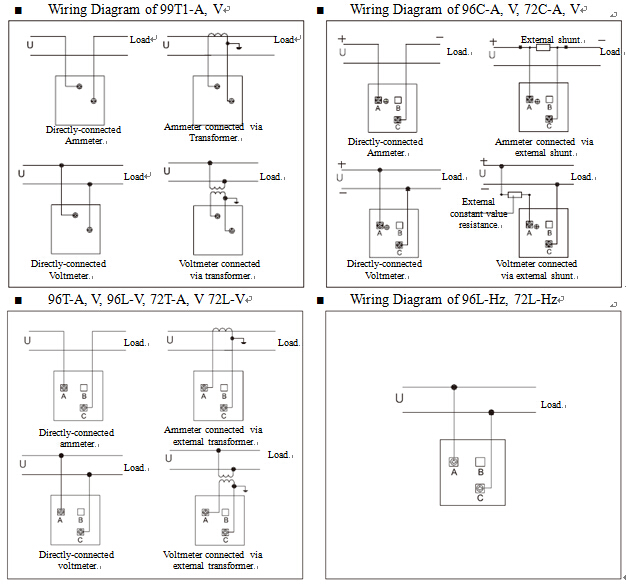

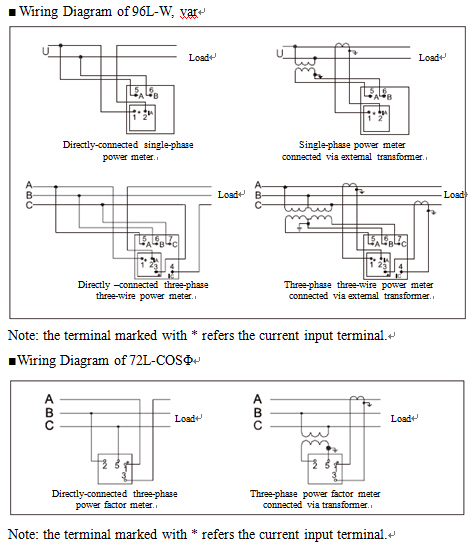

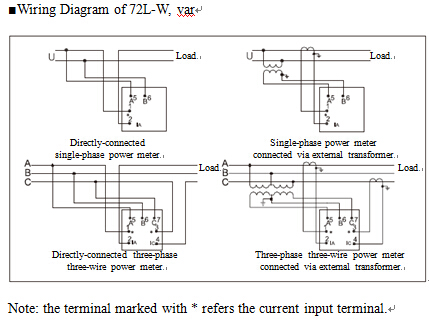

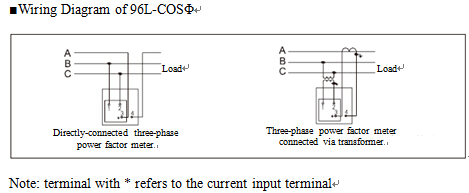

Wiring Diagram
